TFC Insurance AHU

This project consisted removing an existing AHU and of installing a dual duct AHU in the penthouse (5th story) of the Texas Facilities Commision Insurance Building downtown Austin. The new unit is approximately 22’ Wide x 30’ Long x 12’ High. The AHU was a built in place unit, meaning it came in many pieces that needed to be assembled on-site. MPS used a 90 Ton Crane to get the crates of parts on the roof, and staged them in the order they were needed in the space. MPS provided a roof loading plan to ensure the weight of the unit on the roof of the building wouldn’t comprimise the structure. Once the unit was on the roof, MPS moved components into the space including the 12” high bases and 10’ Long Cooling coils. There was a 3’ drop into the penthouse from the roof, making getting these large heavy parts in more difficult. The space to install the new unit was very limited, and in many spots, there was only ½” clearance from the top of the 12’ high unit to the roof. This made building the unit very difficult. MPS was able to overcome the challenges, and passed the leakage test on the unit.

The challenge on this project was that the building could only be without the AHU operating for 9 days. MPS shut the units down on a Friday afternoon, and 9 days later had taken the old unit out, and installed the new unit (including Chilled Water Piping) to ensure the building was receiving conditioned air. During the 9 day outage, MPS supplied portable coolers for 24 different spaces within the building to keep the occupants satisfied while the building AHU was being installed.

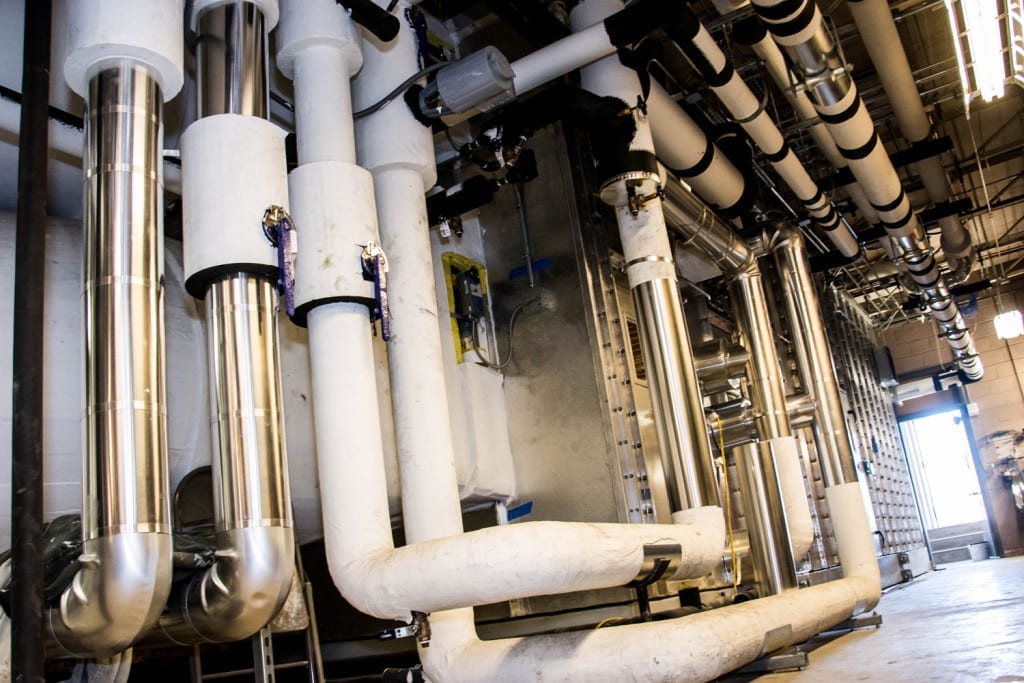

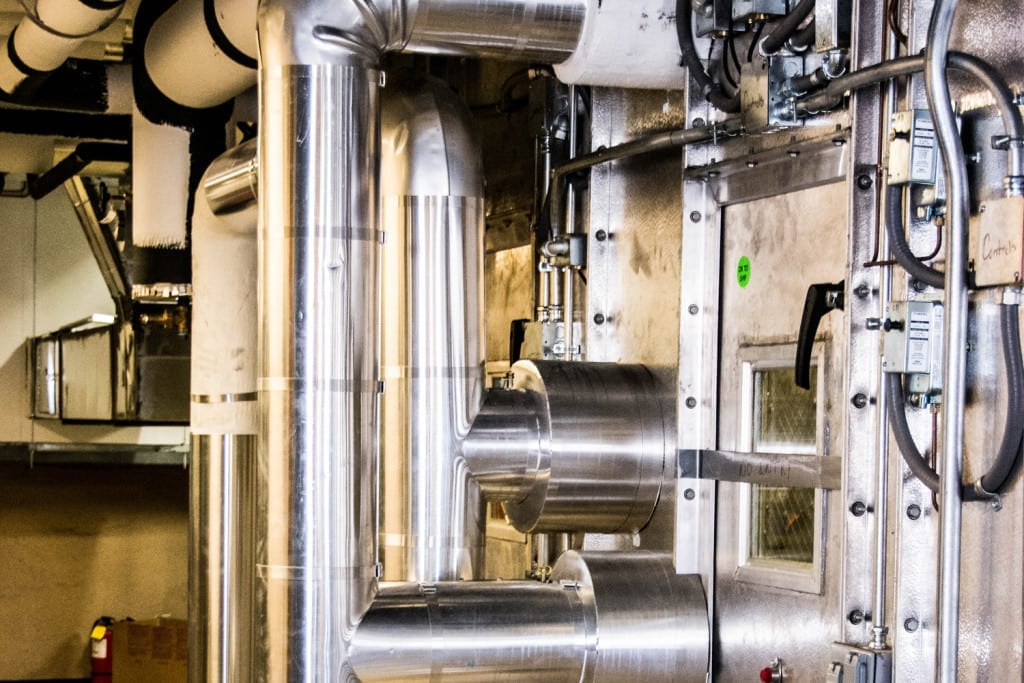

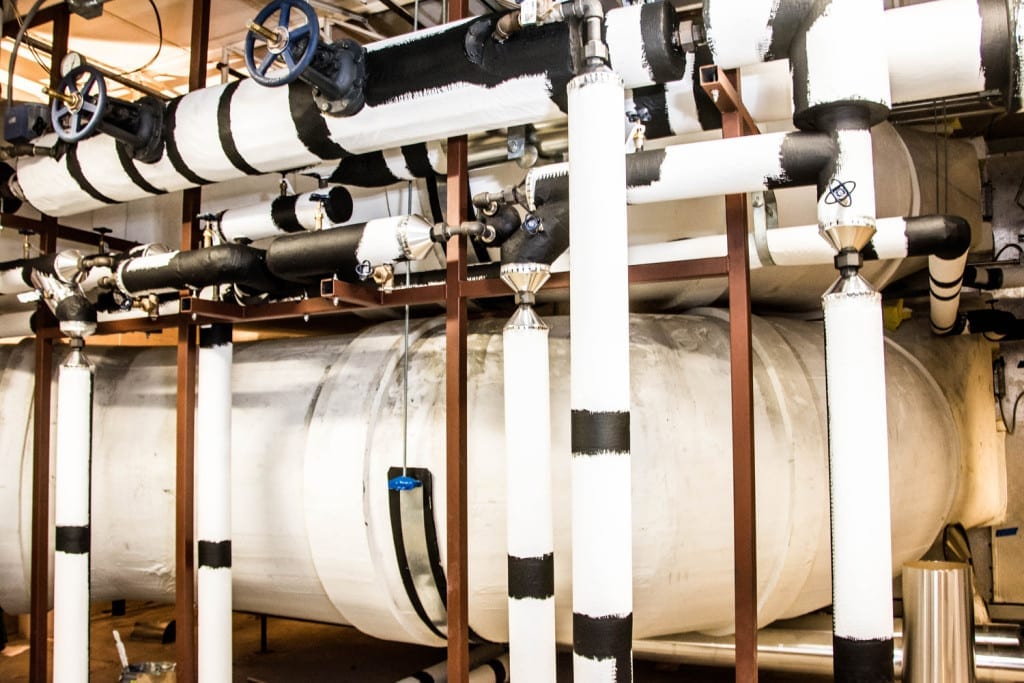

This project also required new ductwork (54” and 45” diameter round duct), CHW Piping, and Steam piping with three new steam control stations, and steam condensate piping to be installed. The penthouse was modeled in 3-D so any field conflicts could be worked out before installation.

MPS was able to accommodate the schedule, and get the building conditioned as required in the alloted 9 day window, and install the piping and pumps associated with the project during the rest of the project.

CLIENT
Texas Facilities Commission
DATE
2014
LOCATION
Four Building Capitol Complex (Insurance BLDG)
CITY & STATE
Austin, TX
PROJECT TYPE
Mechanical Room Equipment Change-Out
CATEGORY
Prime Contractor
